SOLIS / Ginlong - Solis-10k inverter διασυνδεδεμενου
Η ΧΑΜΗΛΟΤΕΡΗ ΤΙΜΗ ΣΕ ΙΝΒΕΡΤΕΡ ΚΑΙΝΟΥΡΓΙΟ ΣΤΗΝ ΕΛΛΑΔΑ
ΠΕΡΙΓΡΑΦΗ

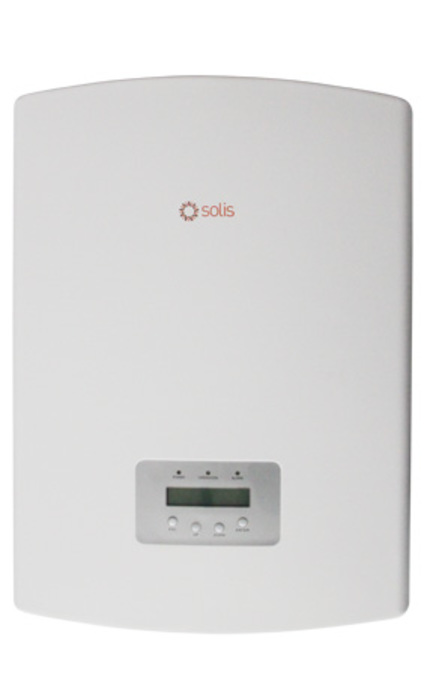

Inverter Δικτύου SOLIS / Ginlong - Solis-10k 10.000W
5 ΕΤΗ ΕΓΓΥΗΣΗ ΚΑΙ ΔΙΑΚΟΠΤΗΣ dc
Τριφασικός μετατροπέας ρεύματος χωρίς μετασχηματιστή
με 2 Mppt
INPUT DATA | SOLIS / Ginlong - Solis-10k 10.0-3-M |
---|---|
Εγγύηση 5 χρόνια με το online registration (Δυνατότητα επέκτασης εγγύησης)
εως και 8 χρονια με την εγγυηση Premium
datasheet details
SOLIS THREE PHASE DT TECHNICAL SPECIFICATIONS
Model | Solis-10K |
---|---|
Energy source | PV |
Input Side(DC) | |
---|---|
Max. DC input power | 11.5kW |
Max. DC input voltage | 1000V |
Start-up input voltage | 250V |
MPPT voltage range | 200-800V |
Max. input current | 18A+18A |
MPPT number/Max. inout strings number | 2/4 |
Output Side(AC) | |
---|---|
Rated output power | 10kW |
Max. apparent output power | 11kVA |
Max. transient power | 11kW |
Rated grid voltage | 400V |
Grid voltage range | 313~470V |
Rated grid frequency | 50Hz |
Operating phase | Three |
Rated grid output current | 14.4 |
Max. output current | 16.7A |
Power Factor (at rated output power) | 0.8…1…0.8 |
Total harmonic distortion(THDi) | <3% |
DC injection current | <20mA |
Grid frenquency range | 47-52Hz or 57-62Hz |
Efficiency | |
---|---|
Max. efficiency | 98.2% |
EU efficiency | 97.3% |
MPPT efficiency | >99.5% |
Protection | |
---|---|
DC reverse-polarity protection | Yes |
Short circuit protection | Yes |
Output over current protection | Yes |
Output over voltage protection | Yes |
Insulation resistance monitoring | Yes |
Residual current detection | Yes |
Surge protection | Yes |
Islanding protection | Yes |
Temperature protection | Yes |
Integrated DC switch | Optional |
General Data | |
---|---|
Dimensions | 430W*613H*269D(mm) |
Weight | 29kg |
Topology | Transformerless |
Self consumption | <1w(night) |
Operating ambient temperature range | -25℃~60℃ |
Ingress protection | IP65 |
Noise emission(typical) | <30 dBA |
Cooling concept | Natural convection |
Max. operating altitude | 4000m |
Designed lifetime | >20 years |
Grid connection standard | EN50438 G59/3 AS4777 VDE0126-1-1 IEC61727 |
Relative humidity | 0~100% |
Safety/EMC standard | EN61000-6-1; EN61000-6-3
IEC62109-1/-2; AS3100 |
Features | |
---|---|
DC connection | MC-4mateable |
AC connection | IP67 rated plug |
Display | LCD 2×20 Z. |
Communication connections | 4 pins RS485 connector |
Warranty | 5 years standard (extend to 20 years) |
